Need a high-speed, versatile mixer for powders, granules, or pastes with consistent homogeneity?

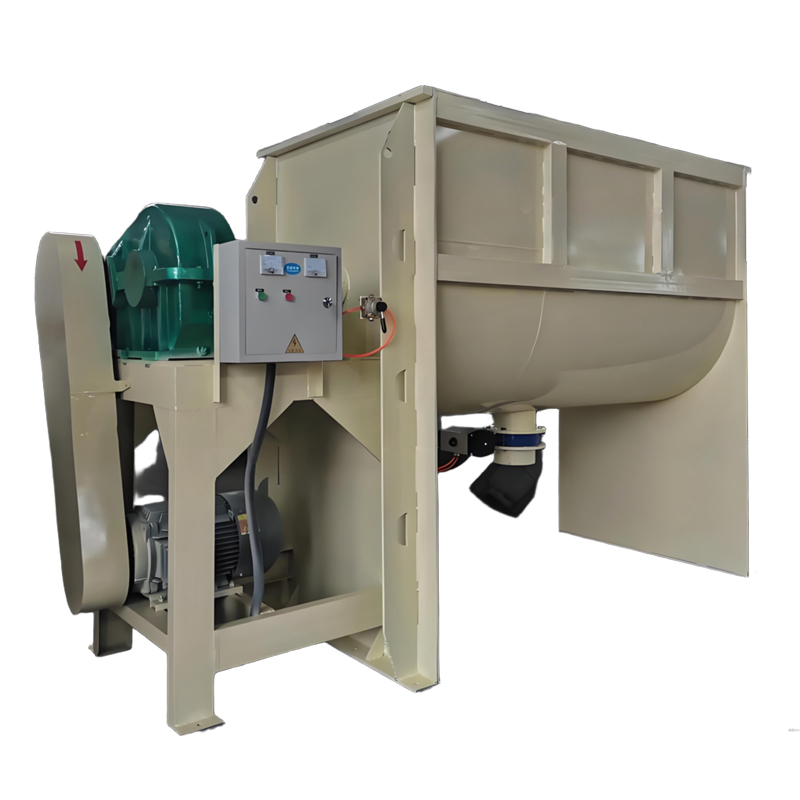

Guanjiang's SHDH Series Horizontal Plowshare Mixer delivers rapid, high-quality blending through its unique plow-shaped agitator design. The multi-directional motion — rotation, shearing, and dispersion — achieves uniform mixing in short cycle times for a wide range of materials. With capacities from 0.05 to 30m³, options for choppers (high-speed dispersers), and robust construction, it's the ideal solution for chemical, pharmaceutical, food, and battery material processing.
Key Advantages
High-speed plow agitation combined with multi-directional motion achieves homogeneous mixing in minutes. Consistent results batch after batch, even for challenging materials.
Handles powders, granules, fibers, pastes, and high-viscosity materials. Optional choppers (high-speed dispersers) break agglomerates and disperse liquids for wet mixing and granulation.
Fluidized mixing action reduces particle degradation and overheating. Optimized drive system ensures low energy consumption while maintaining high throughput.
Smooth interior with no dead corners and large access openings enable quick cleaning and inspection. Optional CIP (Clean-in-Place) system available for sanitary applications.
Available in carbon steel, SS304, and SS316L — heavy-duty design for long-term industrial use. Jacketed options for heating/cooling.
Customizable with choppers, liquid spray systems, and automation. Explosion-proof and GMP-compliant designs available.
From 50L lab units to 30,000L production models — scale from R&D to full production.
How It Works: Plowshare Mixing Principle

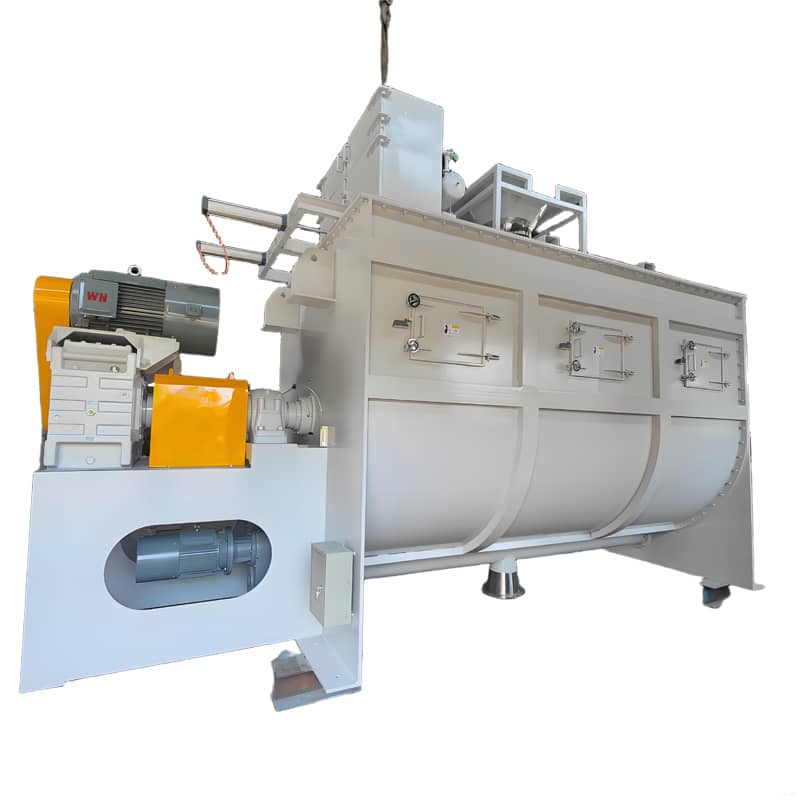

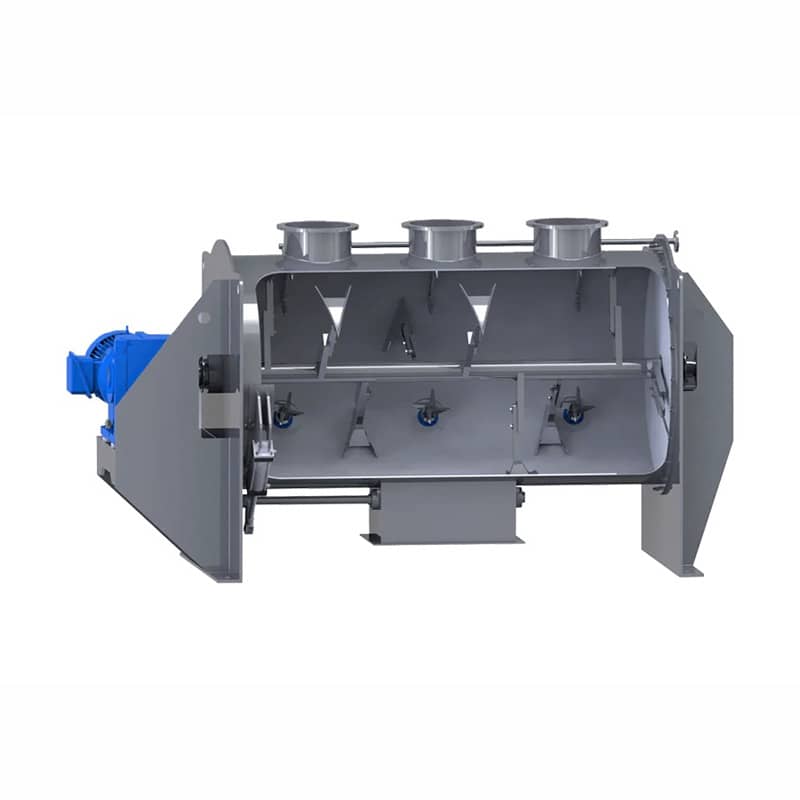

Multi-Directional Plow Agitation: The horizontal cylindrical vessel contains specially designed plow-shaped tools mounted on a rotating shaft. As the shaft rotates, the plows create a fluidized bed — lifting, tossing, and shearing material with high intensity.
Key Motion Components:
- Plow Agitators: Multiple plow-shaped blades create axial and radial flow, moving material in three dimensions.

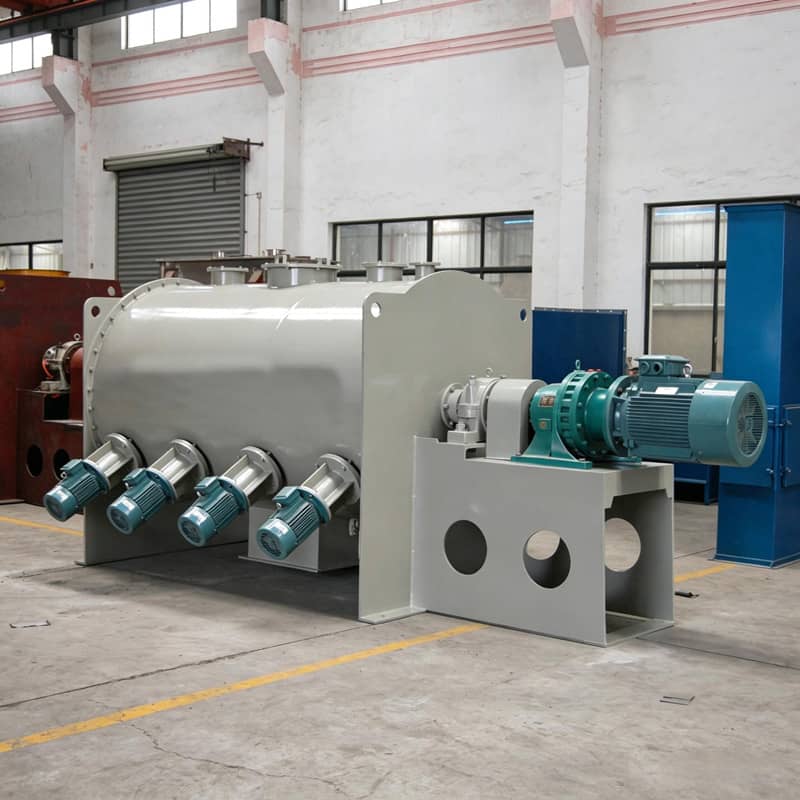

- Choppers (Optional): High-speed cutters mounted on the side break agglomerates, disperse liquids, and accelerate homogenization.
- Intensifier Bars: Used for additional shearing and mixing of high-viscosity pastes.
The combination of mechanical fluidization and shearing achieves rapid, uniform mixing — typically within 2-10 minutes depending on material properties.
Technical Specifications (SHDH Series)
| Model | Main Power (kW) | Main Speed (rpm) | Chopper Power/Qty | Chopper Speed (rpm) | Vessel Size (mm) | Batch Volume (L) | Dimensions (L×W×H) mm | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| SHDH-0.05 | 2.2 | 0-150 | 1.5×1 | 2930 | φ400×418 | 20-30 | 1000×700×1200 | 260 |
| SHDH-0.1 | 3 | 85 | 3×1 | 1440 | φ400×800 | 30-60 | 1500×500×700 | 400 |
| SHDH-0.2 | 4 | 85 | 3×1 | 1440 | φ500×1000 | 60-120 | 2000×600×900 | 600 |
| SHDH-0.5 | 7.5 | 62 | 3×2 | 1440 | φ700×1200 | 150-300 | 2500×800×1200 | 1100 |
| SHDH-1 | 11 | 62 | 3×2 | 1440 | φ900×1500 | 300-600 | 2700×1000×1450 | 1600 |
| SHDH-2 | 15 | 50 | 3×3 | 1440 | φ1100×2000 | 600-1200 | 3300×1200×1700 | 2500 |
| SHDH-3 | 18.5 | 50 | 3×3 | 1440 | φ1280×2250 | 900-1800 | 3800×1300×1950 | 2900 |
| SHDH-4 | 22 | 42 | 3×4 | 1440 | φ1400×2700 | 1200-2400 | 4100×1400×2000 | 4000 |
| SHDH-5 | 30 | 42 | 3×4 | 1440 | φ1500×3000 | 1500-3000 | 4200×1500×2000 | 4500 |
| SHDH-6 | 37 | 42 | 3×4 | 1440 | φ1600×3200 | 1800-3600 | 4500×1700×2000 | 6000 |
| SHDH-8 | 45 | 33 | 3×5 | 1440 | φ1650×3750 | 2400-4800 | 5000×1800×2200 | 7500 |
| SHDH-10 | 55 | 33 | 3×5 | 1440 | φ1800×4000 | 3000-6000 | 6000×1900×2500 | 8500 |
| SHDH-15 | 75 | 26 | 3×6 | 1440 | φ2000×4800 | 4500-9000 | 7000×2100×2800 | 9800 |
| SHDH-20 | 90 | 26 | 3×8 | 1440/2930 | φ2200×5600 | 6000-12000 | 8000×2400×3000 | 13800 |
| SHDH-30 | 132 | 20 | 3×8 | 1440/2930 | φ2300×7500 | 9000-18000 | 10000×2600×3500 | 18500 |
Customization & Options:
Material Options: Carbon steel / SS304 / SS316L (GMP-grade with electropolished finish)
Chopper Options: 1-8 high-speed choppers (3-11kW, 1440/2930 rpm) for agglomerate breaking and liquid dispersion
Special Designs: Jacketed (heating/cooling) / Explosion-proof / Vacuum / Pressure-rated / ATEX-certified
Control Systems: Manual / PLC with HMI / Recipe management / Data logging
Liquid Addition: Spray nozzles for adding binders, oils, or coatings during mixing
Note: Capacity data above is based on materials with specific gravity of 1.0. Actual capacity depends on material density, particle size, and flowability. Contact our engineers for accurate sizing recommendations.
Frequently Asked Questions
Q1: What is the difference between a plowshare mixer and a ribbon blender?
A: Plowshare mixers use high-speed plow-shaped tools that create a fluidized bed — faster mixing (2-10 minutes), better for fragile materials, and can handle pastes and sticky materials. Ribbon blenders use slower, continuous spiral agitation — better for gentle, long-cycle blending of free-flowing powders. Choose plowshare for high-speed, intensive mixing and ribbon for gentle, low-shear blending.
Q2: When do I need to use the chopper (high-speed disperser)?
A: Chopper units are essential for: breaking agglomerates (lumps, clumps), dispersing liquids (wet granulation, coating), and accelerating mixing of difficult materials. Use choppers when mixing sticky, cohesive, or fiber-reinforced materials.
Q3: Can the SHDH mixer handle high-viscosity pastes or wet materials?
A: Yes. The plow design is specifically engineered for pastes, wet cakes, and high-viscosity materials. The fluidized bed action and optional choppers provide intense shearing and dispersion, making it ideal for wet granulation, dough mixing, and viscous paste blending.
Q4: How do you clean the mixer between batches?
A: For sanitary applications, we offer SS316L construction with electropolished interior (Ra<0.4μm). The horizontal design with large access doors allows easy manual cleaning. For automated cleaning, an optional CIP (Clean-in-Place) system with spray nozzles is available.
Q5: What safety features are available for the SHDH mixer?
A: Standard safety features include interlocked access doors (prevents operation when open), emergency stop buttons, and overload protection. For hazardous environments, we offer ATEX-certified configurations with explosion-proof motors and anti-static grounding.
Need a high-speed plowshare mixer for your powder blending or wet granulation process?
Request a Quote → Download Datasheet (PDF)* Please provide your batch volume (L), material type, required mixing time, and any special requirements (chopper, stainless steel, explosion-proof) for a fast, accurate quotation.
