Products Description
Automatic Reactor Feeding System
System Introduction

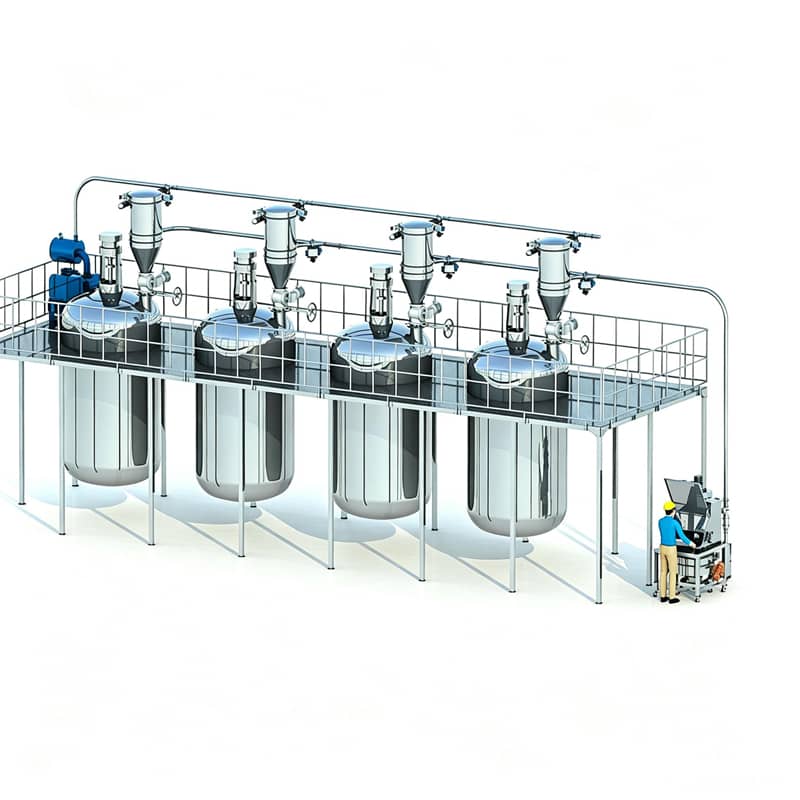

The Automatic Reactor Feeding System is an integrated, intelligent automation solution designed for efficient and precise dosing of solid and liquid raw materials into reactors. Widely used in chemical, pharmaceutical, and food industries, this system improves production efficiency, reduces manual errors, and ensures process safety and stability.
The system integrates dust-free bag dumping, material storage, pneumatic/vacuum conveying, precise batching, dust collection, and PLC control into one seamless solution. It supports both positive pressure (≤100m) and vacuum (≤50m) conveying, enabling one-to-one or one-to-many reactor feeding with programmable dosing parameters.
System Components
Enclosed unloading for FIBC (ton bags) and small bags — eliminates dust emissions at the source.
Buffer hoppers and storage silos with level sensors for continuous material supply.
Positive pressure (≤100m) or vacuum (≤50m) transfer — one-to-one or one-to-many reactor distribution.
High-precision weighing modules with PLC-controlled dosing — programmable feed rate, volume, and timing.
Integrated cartridge or baghouse filters with pulse-jet cleaning — maintains clean workshop environment.
Centralized HMI touchscreen control with recipe storage, data logging, and remote monitoring capability.

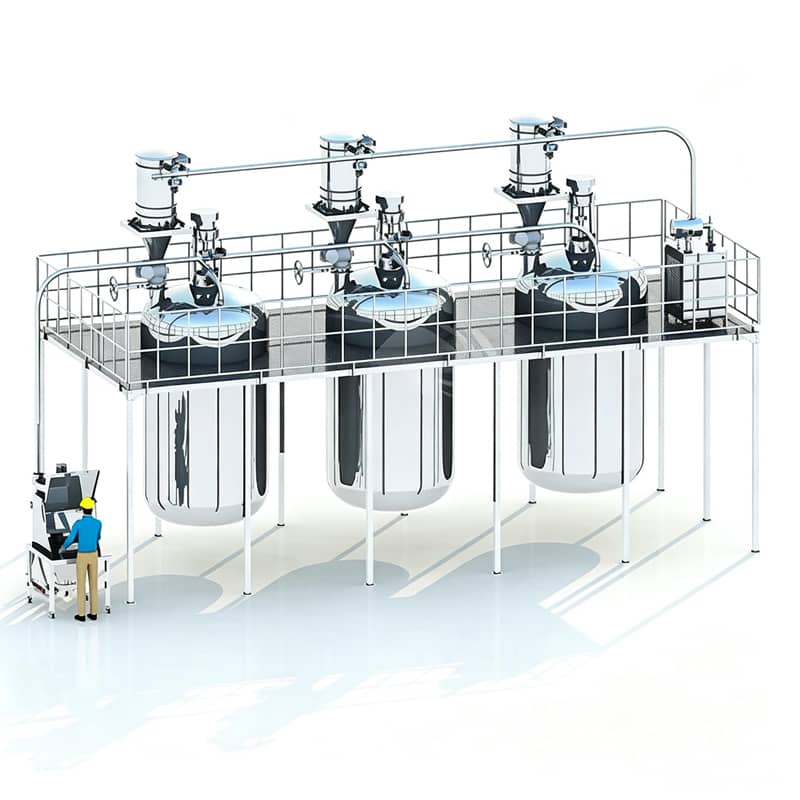

System Process Flow
Key Advantages
Enclosed conveying eliminates dust emissions and electrostatic risks — meets environmental and safety regulations. Reduces fire, explosion, and toxic exposure hazards.
PLC-controlled weighing modules ensure accurate dosing batch after batch — eliminates manual errors. Improves product quality and batch-to-batch consistency.
Reduces material waste through precise dosing. Lower energy consumption. Decreases labor costs by replacing manual handling and batching.
Automated continuous feeding — significantly reduced batch cycle times. One-to-many conveying capability enables multiple reactor feeding from a single source.
Dust-free operation with integrated filtration — minimizes VOC emissions. Meets GMP and EPA standards. Creates a cleaner, safer workplace.
Full data logging of batch weights, timing, and parameters. Supports MES/ERP integration for complete production traceability and quality management.
Comparison: Manual vs. Automatic Reactor Feeding
| Aspect | Manual Reactor Feeding | Automatic Reactor Feeding System |
|---|---|---|
| Safety | Static sparks, dust emissions — fire/explosion/toxic exposure risks | Enclosed conveying — minimizes dust and electrostatic risks. Meets safety regulations. |
| Product Quality | Inaccurate dosing — poor batch consistency | PLC-controlled precision dosing — consistent batch quality |
| Cost Control | Material waste from inaccurate metering | Precise raw material and energy usage — reduces waste |
| Labor | High physical labor — operator fatigue | Minimal manual intervention — reduces labor costs |
| Productivity | Slow, manual bag handling — low throughput | Fast, continuous operation — shorter batch cycles |
| Environment | Severe dust emissions — poor working conditions | Minimal dust and VOC emissions — GMP/EPA compliant |
| Data Traceability | Limited or no data recording | Full batch data logging — supports quality management |
“The automatic reactor feeding system eliminated our dust problems and improved dosing accuracy significantly. Our batch consistency is now excellent, and we've reduced material waste by over 15%. The PLC integration with our DCS system gives us full visibility and traceability.”
— Production Director, Chemical Manufacturing Company
Guanjiang's Automatic Reactor Feeding System delivers a complete turnkey solution for precise, safe, and efficient dosing of solids and liquids into reactors. By integrating dust-free bag dumping, pneumatic/vacuum conveying, PLC-controlled batching, and full data traceability, it addresses the key challenges of manual feeding — improving safety, product quality, productivity, and compliance.
