Products Description
How to safely handle toxic, potent, or dust-generating powders without exposing operators or the environment?
Guanjiang's Glove Box Closed Transfer System provides a fully enclosed containment solution for materials with low bulk density that easily become airborne. Operators remain completely isolated from the product throughout the entire unloading process. Constructed from 304 stainless steel with optional N₂ purge for explosive environments, this mobile unit is ideal for pharmaceutical, chemical, and hazardous material handling.
Key Advantages
Operators have zero physical contact with materials throughout the entire unloading process. Eliminates exposure to toxic, potent, or hazardous substances.
Connects to dust collection system for complete dust elimination. Ideal for low-bulk-density powders that easily become airborne.

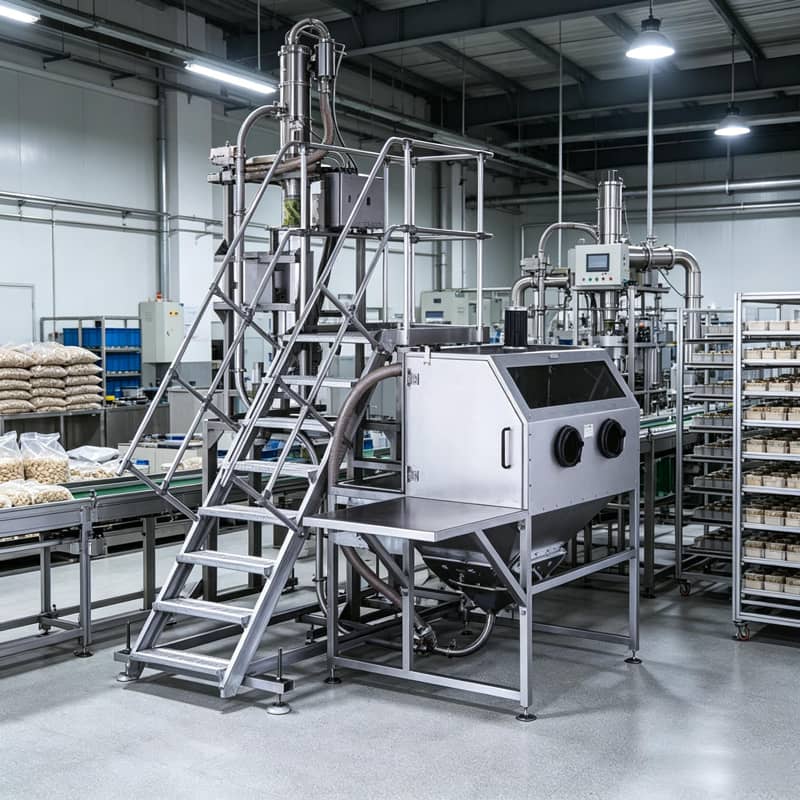

N₂ purge capability for explosive or flammable environments. Maintains inert atmosphere to prevent ignition risks.

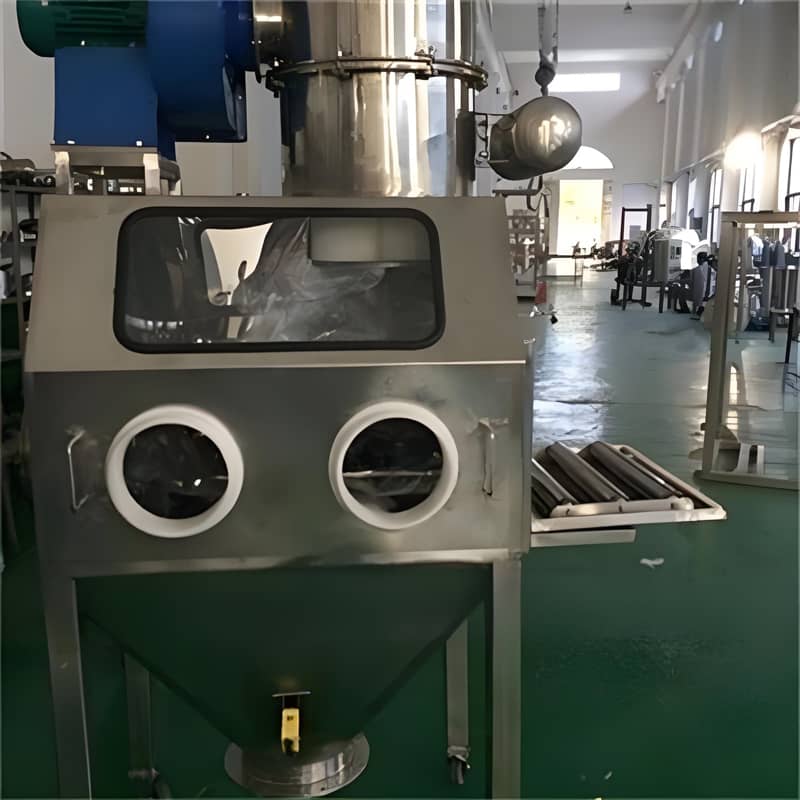

Small footprint with mobile design — easy to move between workstations. Simple, compact structure for convenient operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material of Construction | 304 Stainless Steel |
| Glove Port Diameter | Customizable |
| Glove Port Height | Customizable |

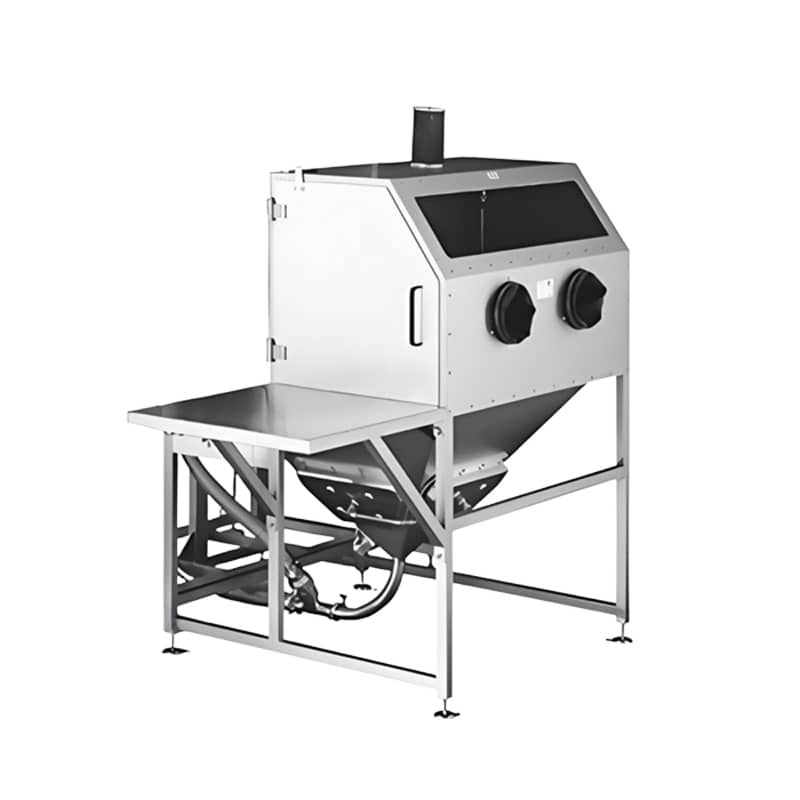

| Glove Material Options | Neoprene / Natural Rubber |
| Hopper Volume | Customizable based on customer requirements |

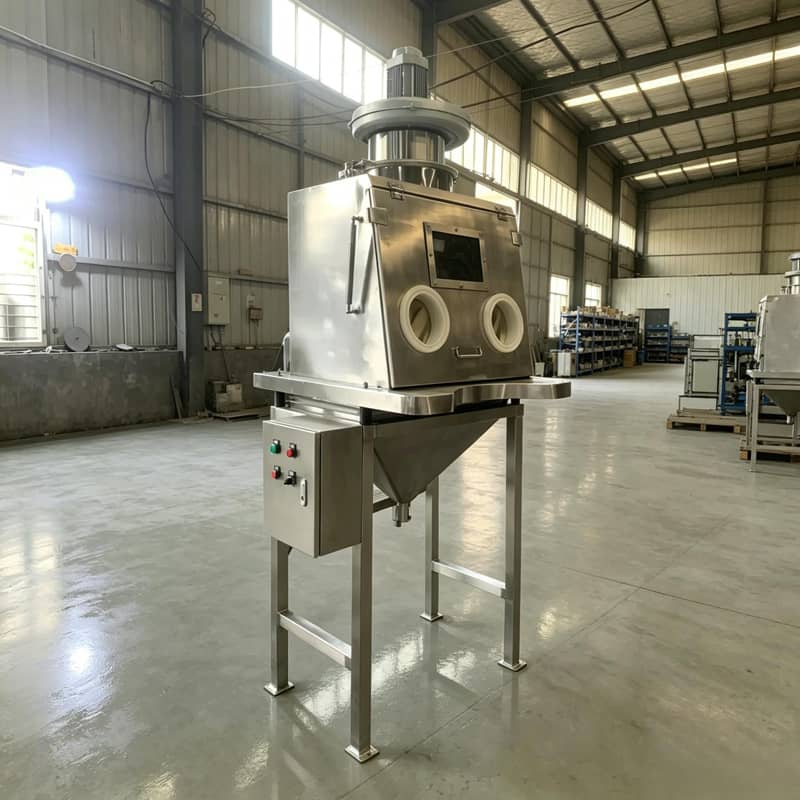

| Standard Dimensions (Dual Door) | 2000 × 700 × 1500 mm |
| Customization | Available upon request |
Customization Available:
The glove box closed transfer system can be fully customized based on your specific material characteristics, process requirements, and available space. Contact us with your requirements for a detailed proposal.
Frequently Asked Questions
Q1: What types of materials is this glove box system designed for?
A: This system is specifically designed for low-bulk-density powders that easily become airborne, as well as toxic, potent, or hazardous materials that require operator isolation. Common applications include pharmaceutical APIs, cytotoxic compounds, potent chemicals, and fine powders.
Q2: How does the system prevent dust from escaping?
A: The system operates as a fully enclosed unit and can be connected to an external dust collection system. This combination ensures complete dust elimination during the entire unloading process. Empty bags are also collected inside the contained environment to prevent residual material from escaping.
Q3: Can the system be used in explosive environments?
A: Yes. The glove box can be equipped with N₂ purge capability to maintain an inert atmosphere, making it suitable for explosive or flammable environments. This is particularly important for handling solvents or fine combustible dusts.
Q4: Is the system mobile or fixed installation?
A: The system has a compact, mobile design with a small footprint. It can be easily moved between different workstations as needed, offering flexibility in multi-product or multi-process facilities.
Need a containment solution for toxic or potent powder handling?
Request a Quote → Download Datasheet (PDF)* Please provide your material type, particle size, toxicity level, and whether N₂ purge is required for an accurate quotation.
